- Weight (Without Rotator, Link or Multi-Tree Handling)
- 770 kg / 1,698 lb
- Hydraulic Requirements
- 28 MPa / 4,061 psi
- Cutting Capacity
- 520 mm / 20.5 in
- Delimbing Diameter Tip-to-Tip
- 360 mm / 14.2 in

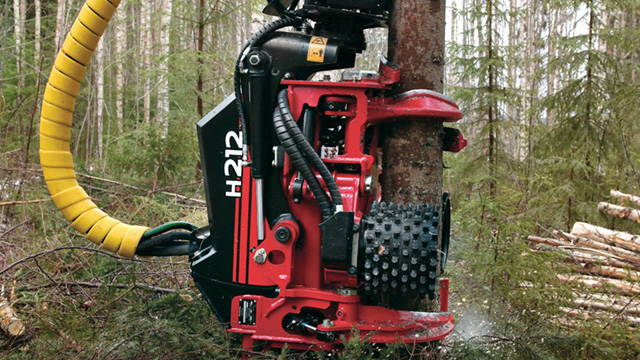

Built for performance and speed, the compact H212 harvester head delivers big productivity for harvesting, processing and debarking applications. With its robust and nimble design, this all-around capable head is a little giant in the forest.
The H212 features the efficient SuperCut 100S saw unit with improved auto tensioning and easier servicing. This harvester head can fell and process trees up to 520 mm (20.5 in.) in diameter. The delimb arms complement the feeding power and grip of the drive arms on large or crooked stems.
The narrow head design provides excellent visibility even when knives and rollers are open. This helps increase agility in small diameter dense stands. The saw box provides good visibility for aiming felling cuts as well as pivot position for efficient cutting.
The H212 harvester head utilizes the TimberRiteTM H-16 control system for improved head performance, productivity and measuring accuracy.
Technical Data
| Dimensions: | Height, std tilt frame, without rotator and link (mm/in.) | 1360 / 53.5 | |
| Width, arms open (mm/in.) | 1150 / 45.3 | ||
| Width, arms closed (mm/in.) | 1025 / 40.4 | ||
| Weight: | 770 / 1698 (Std) | ||
| 830 / 1830 (Incl. MTH) | |||
| Delimbing: | Front knife | Fixed | |
| Maximum opening upper knives (mm/in.) | 500 / 19.7 | ||
| Delimbing diameter tip to tip (mm/in.) | 360 / 14.2 | ||
| Rear knife (mm/in.) | One | ||
| Rear knife maximum opening | 550 / 21.7 | ||
| Feeding: | Quantity drive rollers | Two | |
| Maximum feed roller opening (mm/in.) | 440 / 17.3 | ||
| Maximum feed force 398 cc motors (kN/lbf) | 20 / 4496 | ||
| Maximum feed speed (m/s, ft/s) | 5.4 / 17.7 | ||
| Cutting: | Maximum felling cut diameter (64cm bar) (mm/in.) | 520 / 20.5 | |
| Maximum saw bar length (mm/in.) | 64 / 25.2 | ||
| Chain type (mm/in.) | 10 /.404 | ||
| MTH Capacity (measured at DBH) (mm/in.) | 2 stems @ 130 / 5.1 | 3 stems @ 100 / 3.9 |
Optional Configurations
| Adaptation to other control systems | Color marking |
| Stump treatment (through nozzle, saw bar, or both) | Processing upper delimb knives |
| Multi-tree handling | Saw lubrication (bar oil / greasing option) |
| HD tilt frame for tracked carriers | Snow protection |
| Measuring wheel options | Eucalyptus debarking configuration option |
| Feed Wheels: Eucalyptus debarking; Steel thumbnail; Steel ribbed |
